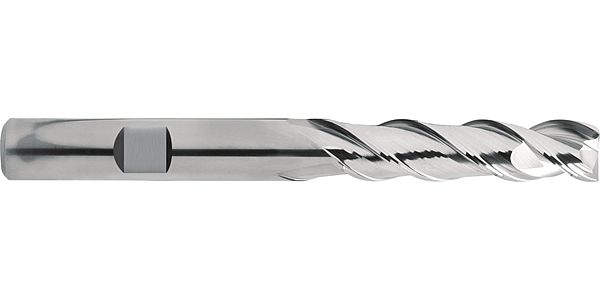

Ratio end mills Alu RF 100 AL
-
Aufnahmetyp, maschinenseitig: DIN 6535-HB -
Ø-Toleranz: e8 -
Norm: Werksnorm -
Oberfläche: blank -
Schneidrichtung: rechts -
Schneidstoff: VHM -
Schneidenzahl: 3 -
Form: A -
Spiralwinkel (Spanwinkel): 39/40/41 -
Pikto Anschnitt: 45 -
Pikto Helix: helix -
Pikto Länge: 4xD -
Pikto Rampen: rampen -
Pikto Rückspanwinkel: 10 -
Pikto Schlichten: schlichten -
Pikto Schruppen: schruppen -
Pikto Zustellung: mit_bohren -
Innenkühlung: ohne -
Produkt-Logo: GTC
nano polished cutting edges • re-inforced core • centre cutting
SKU
6733
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
