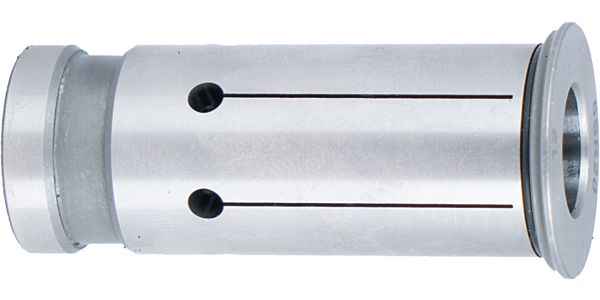

Adapter sleeves
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Norm: Werksnorm
- for clamping smaller shank Ø in hydraulic chucks
- clamping-Ø for tool shank tolerance h6
- concentricity ≤ 5 μm
- for a coolant pressure up to 80 bar
SKU
4665
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
