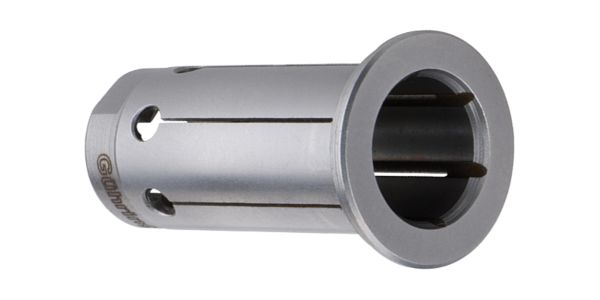

Adapter sleeves
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Norm: Werksnorm -
Stempel: ERWEITERT -
Produkt-Logo: GUEJET
- for clamping taps with square shank in hydraulic synchro tapping chucks
- clamping Ø for tool shank tolerance h6-h9
- with coolant slots for peripheral cooling
- positive drive of reduction bush in hydraulic synchro tapping chucks
- position ajdusting screw on the shank of the tap
- adjusting screw enables 3 mm axial length readjustment
SKU
4606
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
