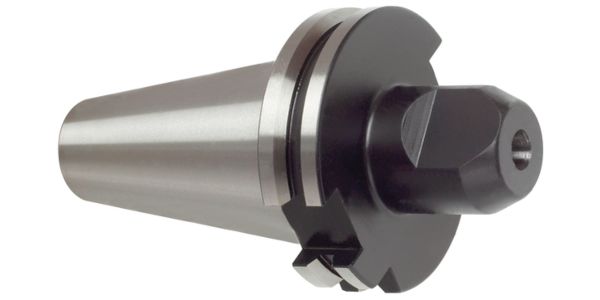

Side lock holders
-
Aufnahmetyp, maschinenseitig: Steilkegel -
Norm: Werksnorm -
Oberfläche: browned -
Innenkühlung: mit
ISO taper to DIN ISO 7388-1 form AD/AF • with mounting hole DIN 1835-2, Form E „Whistle Notch“ • balancing quality: G 6.3 / 15,000 rpm • from holder d1 = 25 mm with 2 clamping screws, art. no. 4903
SKU
4322
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
