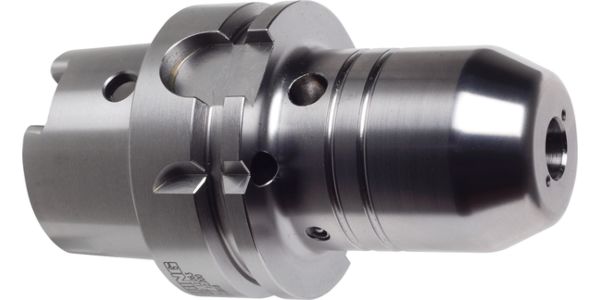

Side lock holders
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: DIN 69882-4 -
Oberfläche: blank -
Innenkühlung: mit -
Produkt-Logo: GUEJET
- HSK-A according to ISO 12164-1 / DIN 69893-1
- dimensions according to DIN 69882-4
- balancing quality: G 6.3 / 15,000 rpm
- with mounting hole DIN 1835-2, Form B “Weldon”
- from holder d1 = 25 mm with 2 clamping screws, art. no. 4903
- with coolant ducts for peripheral cooling, therefore process and tool life improvement
- coolant ducts: d1 = 6 - 14 mm with two coolant ducts, d1 = 16 - 32 mm with four coolant ducts
SKU
4232
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
