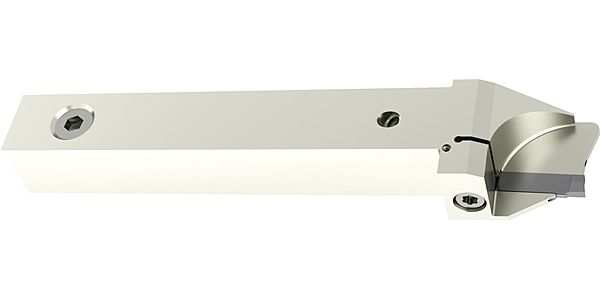

Square shank holder
-
Norm: Werksnorm -
Schneidrichtung: links -
Typ: GH222 -
Stempel: NEU -
Innenkühlung: mit
with internal coolant supply from above and below • TL (tubeless): tubeless coolant supply from shank size 19.05x19.05 from shank bottom
SKU
26107
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
for sliding headstock lathes • for indexable inserts type 222 • tmax. 21 mm: maximum grooving depth before 2nd cutting edge engages
Available in many variants
