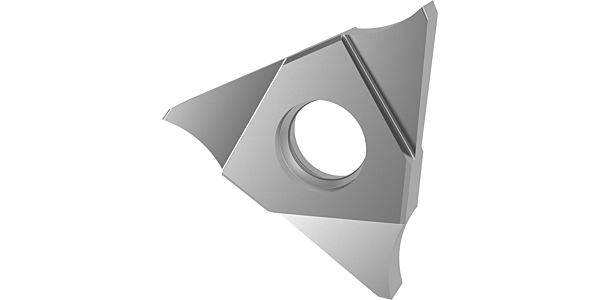

Indexable inserts for radial grooving
-
Norm: Werksnorm -
Oberfläche: blank -
Schneidrichtung: neutral -
Typ: GE305 -
Schneidstoff: VHM -
Pikto Drehen: WSS_RAD_GN
indexable inserts applicable in right and left holders • geometry .BA ground • pay attention to assignment holder/insert seat size 04/06 • for tool holders type GH305/GB305, size 04/06
SKU
25603
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
snap ring grooves to DIN471/472, NW = 0.5-5.15 mm
Available in many variants
